Stainless steel welded pipes are a fundamental and versatile component in countless applications, from the intricate plumbing in a skyscraper to the vast pipelines of a chemical plant. As the name implies, these are pipes formed by rolling and welding strips or plates of stainless steel,https://www.sscapillary.com/the-essential-guide-to-medical-stainless-steel-tubing.html creating a product that combines the inherent corrosion resistance of stainless steel with the economic and dimensional advantages of the welding process. Their widespread use is a testament to their reliability, cost-effectiveness, and adaptability in meeting the stringent demands of modern engineering.

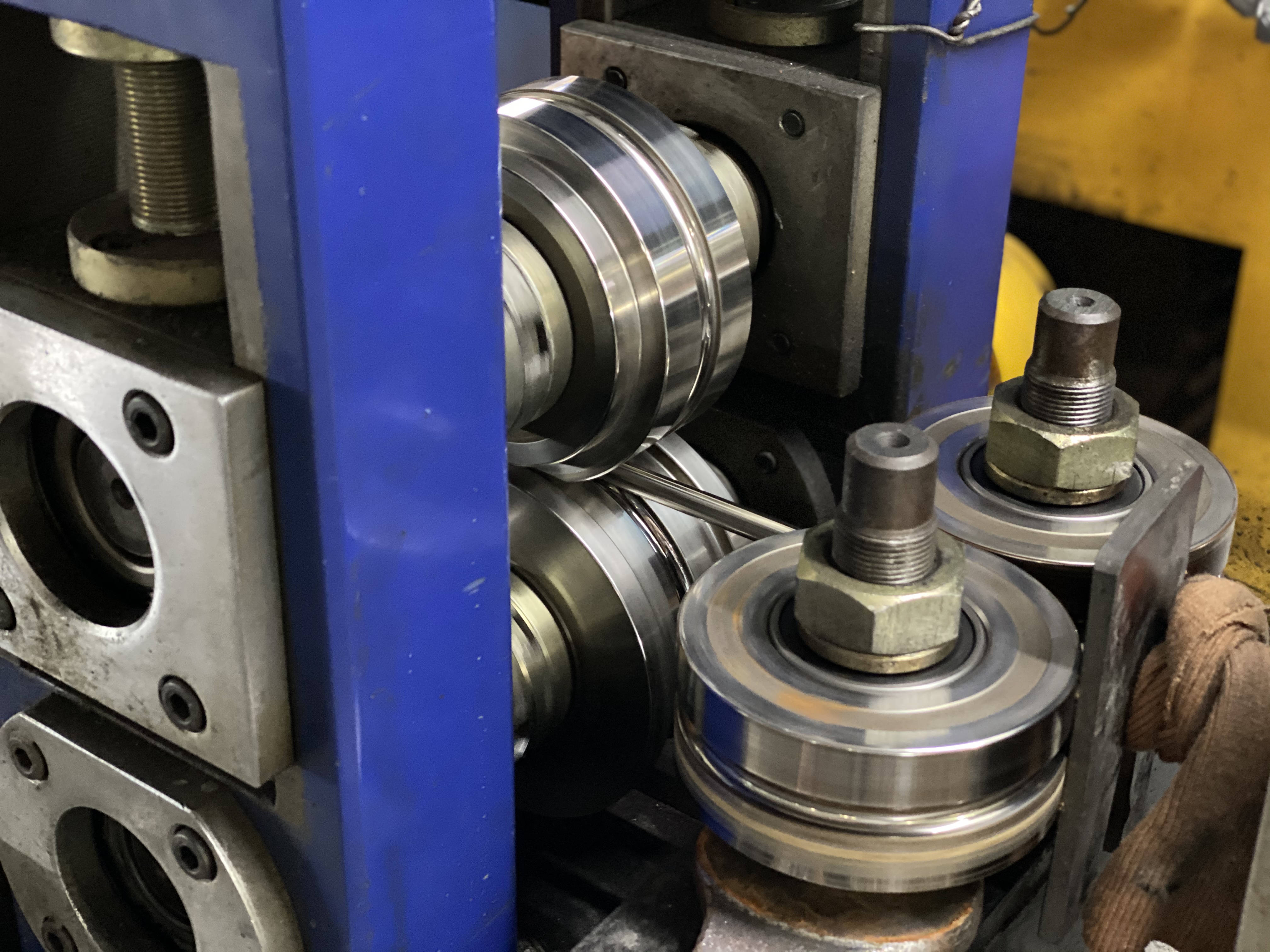

The journey of a stainless steel welded pipe begins with a raw material known as a skelp or coil, which is a rolled strip of stainless steel of a specific grade and thickness. The primary manufacturing method is the Electric Resistance Welding (ERW) process. In this method, the steel strip is first uncoiled and fed through a series of forming rolls. These rolls gradually bend the flat strip into a cylindrical shape, with the edges brought together to form a precise gap.
The critical welding phase then occurs. In the ERW process, an electric current is passed between the two edges of the steel. The electrical resistance at the gap generates intense, localized heat, causing the metal to melt and fuse together without the need for a filler material. This creates a strong, homogeneous weld seam. Following welding, the pipe undergoes a crucial post-weld treatment. The weld bead on the inside and outside is often removed to create a smooth, flush surface, and the weld zone is heat-treated (annealed) to restore the corrosion resistance that can be compromised by the high heat of welding. Finally, the pipes are cut to specific lengths, straightened, and subjected to rigorous quality control tests, including hydrostatic pressure testing and eddy current or ultrasonic inspection, to ensure integrity and leak-proof performance.
For larger diameter pipes, methods like Longitudinal Submerged Arc Welding (LSAW) are employed, where the weld is made along the pipe's length using a submerged arc process, ideal for high-pressure applications.
The utility of welded pipes stems directly from the properties of stainless steel itself. The defining characteristic of stainless steel is its corrosion resistance, which is imparted by a minimum of 10.5% chromium content. This chromium forms a passive, invisible, and self-repairing layer of chromium oxide on the surface, protecting the underlying metal from oxidation and attack from various corrosive agents.
Different grades offer tailored properties:
◆Grade 304/L: The most common "austenitic" grade, excellent for general corrosion resistance in a wide range of environments, including those involving food and beverages.
◆Grade 316/L: Contains molybdenum, which significantly enhances resistance to chlorides and acids, making it the preferred choice for marine applications, chemical processing, and coastal architecture.
◆Grade 409: A "ferritic" grade, often used in automotive exhaust systems for its good heat and corrosion resistance at a lower cost.
◆Duplex Grades (e.g., 2205): Offer a mixed microstructure, providing superior strength and excellent resistance to stress corrosion cracking, ideal for aggressive offshore and chemical environments.
Beyond corrosion resistance, stainless steel offers high strength, durability, formability, and an easily cleanable, hygienic surface, making it indispensable in sectors like food and pharmaceuticals.
Stainless steel welded pipes offer several distinct advantages over their seamless counterparts, which dictate their application areas.
1. Cost-Effectiveness: The manufacturing process for welded pipes is generally more efficient and requires less energy than the complex process of creating a seamless pipe from a solid billet. This makes welded pipes significantly more economical, especially for large-diameter projects.
2. Consistent Wall Thickness and Surface Finish: Because they are formed from a uniformly rolled strip, welded pipes have a very consistent wall thickness around the entire circumference. They also typically have a smoother surface finish, which is critical for applications where friction or contamination must be minimized.
3. Availability in Large Sizes: Producing very large diameter seamless pipes is technically challenging and prohibitively expensive. Welded pipes, however, can be manufactured in diameters exceeding 100 inches, making them the only viable option for large-scale water transmission, piling, and structural applications.
These advantages translate into a vast array of real-world applications:
◆Architecture and Construction (A&D): Used for handrails, structural supports, curtain wall systems, and decorative elements. Their aesthetic appeal and durability are key.
◆Water and Sanitation: The backbone of potable water distribution systems, wastewater treatment plants, and desalination facilities due to their corrosion resistance and long service life.
◆Oil and Gas: Used for gathering lines, low-pressure process piping, and structural components where the high cost of seamless is not justified.
◆Food and Beverage Industry: Essential for process lines transporting ingredients, beer, milk, and other consumables, as they are non-reactive, easy to sterilize, and meet strict hygienic standards.
◆Automotive: Used in exhaust systems, fuel lines, and structural components.
◆Pharmaceutical and Chemical: Employed in process piping where purity and resistance to aggressive chemicals are paramount.
The choice between welded and seamless stainless steel pipes is not about which is superior, but which is more appropriate for the application. Seamless pipes, formed by piercing a solid billet, have no weld seam, which is theoretically a point of weakness. This makes them the mandatory choice for extremely high-pressure, high-temperature, or critical applications in the oil and gas, power generation, and aerospace industries (e.g., boiler tubes, high-pressure hydraulic lines).
However, for the vast majority of industrial, commercial, and construction applications, the weld seam of a properly manufactured and treated stainless steel welded pipe is not a liability. Modern welding and non-destructive testing technologies ensure that the weld integrity is equal to or exceeds the strength of the parent metal. Therefore, when the application does not involve extreme cyclical pressures or temperatures, a welded pipe offers a more economical, readily available, and dimensionally consistent solution.
In conclusion, the stainless steel welded pipe is a masterpiece of modern metallurgy and manufacturing. It represents a perfect synergy between the superior material properties of stainless steel and an efficient, scalable production process. Its ability to resist corrosion, maintain structural integrity, and be produced cost-effectively in a wide range of sizes has cemented its role as an indispensable component across the globe. From ensuring the flow of clean water to shaping the skyline of our cities, the stainless steel welded pipe truly is an unsung hero of the modern industrial and built environment.
