Stainless steel thin tubes are essential components across countless industries, from medical devices to aerospace applications. These precision-engineered tubes offer exceptional strength-to-weight ratios, corrosion resistance, and versatility that make them indispensable for modern manufacturing and engineering projects.
Whether you're designing a medical instrument, building industrial equipment, or working on a precision engineering project, understanding the properties and applications of stainless steel thin tubes can help you make informed decisions for your specific needs. This comprehensive guide explores everything you need to know about these remarkable components, including their manufacturing processes, key applications, and selection criteria.

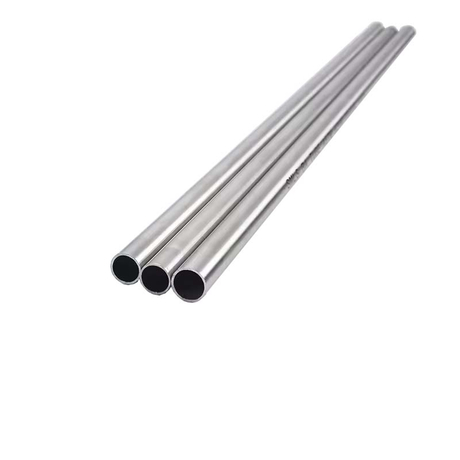

Stainless steel thin tubes are characterized by their small diameter and wall thickness, typically ranging from 0.1mm to 25mm in outer diameter with wall thicknesses as thin as 0.05mm. The precision manufacturing required to create these tubes demands advanced production techniques and strict quality control measures.
The unique properties of stainless steel make these thin tubes particularly valuable:
Corrosion Resistance: The chromium content in stainless steel forms a passive oxide layer that protects against rust and corrosion, even in challenging environments.
Strength and Durability: Despite their thin walls, these tubes maintain excellent structural integrity and can withstand significant pressure and stress.
Biocompatibility: Many stainless steel grades are biocompatible, making them suitable for medical and food-grade applications.
Temperature Resistance: Stainless steel thin tubes can operate effectively across a wide temperature range, from cryogenic conditions to high-heat applications.
The most common method for producing stainless steel thin tubes involves cold drawing, where the material is pulled through progressively smaller dies at room temperature. This process creates precise dimensions while improving the mechanical properties of the steel.
Cold drawing offers several advantages:
Enhanced surface finish quality
Improved dimensional accuracy
Increased tensile strength
Better straightness and roundness
Stainless steel thin tubes are available in both welded and seamless varieties, each with distinct characteristics:
Seamless tubes are manufactured from solid steel billets and offer superior strength and pressure resistance. They're ideal for high-pressure applications and critical structural components.
Welded tubes are formed from steel strips that are welded along a seam. They're more cost-effective for many applications and can achieve tighter tolerances in some cases.
The medical industry relies heavily on stainless steel thin tubes for various applications:

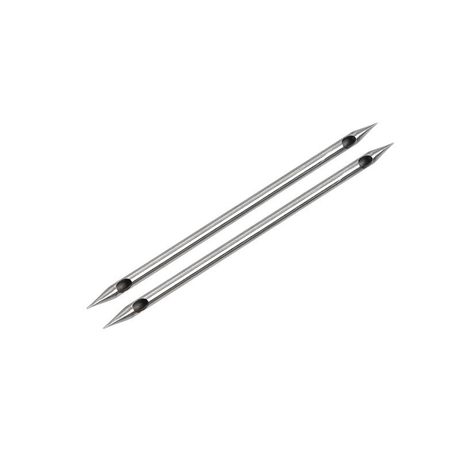

Hypodermic needles: Precision-drawn tubes with extremely thin walls and sharp points
Catheter components: Flexible, biocompatible tubes for minimally invasive procedures
Surgical instruments: Components that require strength, precision, and easy sterilization
Implantable devices: Long-term biocompatibility for pacemaker leads and other implants
Aerospace applications demand materials that can withstand extreme conditions while maintaining minimal weight:
Fuel injection systems: Precise fuel delivery requires accurate bore dimensions
Hydraulic systems: High-pressure applications benefit from seamless construction
Instrumentation tubing: Reliable data transmission in harsh environments
Structural components: Weight-critical applications where strength matters
Modern vehicles incorporate stainless steel thin tubes in various systems:
Fuel lines: Corrosion resistance prevents contamination and ensures longevity
Brake lines: Reliable performance under high-pressure conditions
Exhaust components: Heat resistance and corrosion protection
Sensor housings: Precision dimensions for accurate readings
Industrial applications span numerous sectors:
Heat exchangers: Efficient heat transfer with corrosion resistance
Chemical processing: Resistance to aggressive chemicals and high temperatures
Pneumatic systems: Precise air flow control and reliability
Analytical instruments: Laboratory equipment requiring high purity and precision
Grade 304 stainless steel offers excellent general-purpose performance with good corrosion resistance and formability. It's the most commonly used grade for thin tube applications where cost-effectiveness matters.
Grade 316 includes molybdenum, which significantly improves corrosion resistance, particularly against chlorides and marine environments. This makes it ideal for medical implants and marine applications.
Grade 321 contains titanium, which prevents carbide precipitation at high temperatures. This grade excels in aerospace and high-temperature industrial applications.
Other grades like 17-4 PH, 15-5 PH, and duplex stainless steels offer specific properties for specialized applications requiring higher strength or unique corrosion resistance characteristics.
Stainless steel thin tubes are manufactured to strict tolerances, typically:
Outside diameter: ±0.05mm to ±0.1mm
Wall thickness: ±0.025mm to ±0.05mm
Straightness: 0.5mm per meter or better
Various surface finishes are available depending on the application:
Bright annealed: Smooth, reflective surface for aesthetic applications
Pickled and passivated: Clean surface with maximum corrosion resistance
Electropolished: Ultra-smooth surface for pharmaceutical and food applications
Quality stainless steel thin tubes undergo rigorous testing:
Dimensional verification
Tensile and yield strength testing
Corrosion resistance evaluation
Surface roughness measurement
Non-destructive testing for critical applications
Store stainless steel thin tubes in clean, dry environments away from carbon steel to prevent contamination. Use protective packaging to maintain surface quality during transport and storage.
Use appropriate cutting methods to prevent work hardening and maintain tube integrity:
Clean, sharp cutting tools
Proper cutting speeds and feeds
Adequate lubrication when necessary
Deburring to prevent stress concentrations
Various joining techniques are suitable for stainless steel thin tubes:
TIG welding: Provides clean, strong joints for critical applications
Brazing: Lower temperature process that minimizes distortion
Mechanical fittings: Quick, reliable connections for field installation
Adhesive bonding: Suitable for specific applications requiring flexibility
New manufacturing methods are enabling even thinner walls and tighter tolerances:
Laser welding for seamless appearance
Additive manufacturing for complex geometries
Advanced drawing techniques for ultra-thin applications
Integration with sensors and monitoring systems is becoming more common, enabling real-time monitoring of tube performance and condition.
The industry is focusing on more sustainable practices, including improved recycling programs and energy-efficient manufacturing processes.
Selecting the appropriate stainless steel thin tube requires careful consideration of several factors:
Application Requirements: Understand the operating conditions, including temperature, pressure, and chemical exposure.
Dimensional Needs: Specify precise requirements for diameter, wall thickness, and length.
Grade Selection: Choose the stainless steel grade that best matches your performance and budget requirements.
Quality Standards: Ensure the supplier meets relevant industry standards and certifications.
Long-term Considerations: Factor in maintenance requirements, lifespan expectations, and total cost of ownership.
Stainless steel thin tubes represent a critical component in modern engineering and manufacturing. Their unique combination of strength, precision, and versatility continues to enable innovation across industries. By understanding their properties, applications, and selection criteria, you can leverage these remarkable components to achieve superior performance in your projects.
