When we think of industrial infrastructure, we often picture massive pipelines spanning continents. However, the true marvel of modern engineering frequently lies in the microscopic. As technology in the medical and automation sectors shrinks, the demand for precision components has skyrocketed. At the heart of this miniaturization revolution sits the humble, yet indispensable, stainless steel pipe.
Specifically, the need for capillary tubes—extremely thin, precise pipes—is growing rapidly. These aren't just off-the-shelf plumbing supplies; they are critical components used in everything from surgical needles to sensitive temperature instruments. For engineers and procurement officers, understanding the nuances of these materials is no longer optional. It is the difference between a product that saves lives and one that fails during testing.
Choosing the right tubing involves navigating a maze of grades, tolerances, and finishing techniques. Whether you are sourcing components for a new medical device or upgrading an industrial heat exchanger, the quality of your stainless steel pipe dictates the performance of your final product.

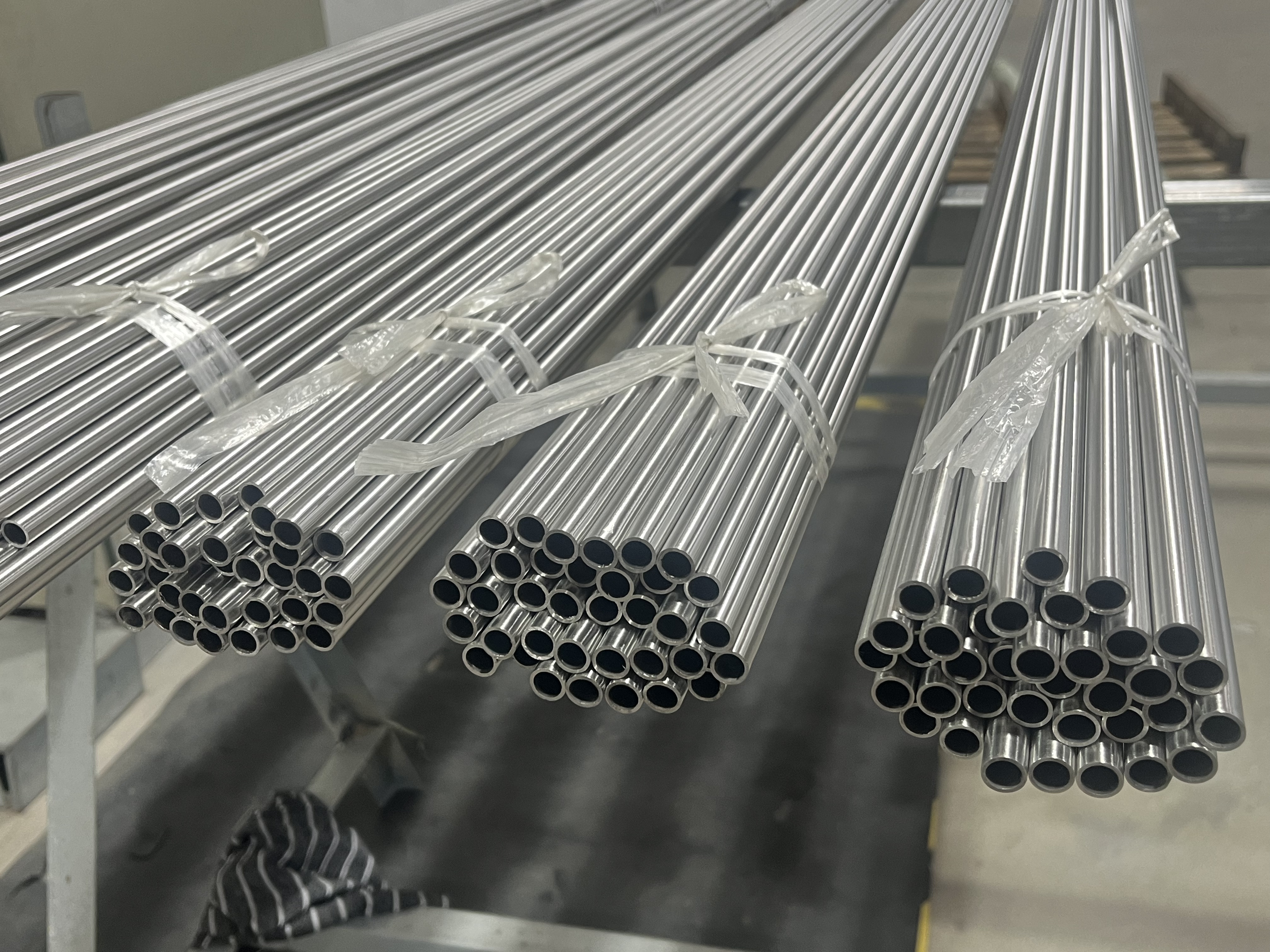

In the world of precision manufacturing, size defines function. A small-diameter stainless steel pipe, often referred to as a capillary tube, is generally characterized by an outer diameter (OD) ranging from 0.1mm to 6mm. Despite their delicate appearance, these tubes are engineered to withstand immense pressure and harsh environments.
Capillary tubes are the unsung heroes of the medical industry. They serve as the structural pathway for minimally invasive surgical tools and reliable delivery systems for fluids. Because these applications are often intracorporeal (inside the body), the margin for error is non-existent. The tubes must be free of burrs, perfectly straight, and chemically inert.
Beyond medicine, these pipes are essential in fiber optic protection, antenna construction, and automated machinery where space is at a premium but durability cannot be compromised.
When browsing a catalog for a stainless steel pipe, you will primarily encounter two grades: 304 and 316L. While they look identical to the naked eye, their chemical compositions dictate their specific use cases.
Grade 304 is the workhorse of stainless steel. It offers excellent corrosion resistance and formability, making it the standard choice for general industrial applications, temperature sensors, and consumer goods. It resists oxidation well but can be susceptible to corrosion from chloride solutions (like saltwater) over time.
For medical and marine applications, 316L is the superior choice. The "L" stands for "Low Carbon," which improves weldability and reduces the risk of corrosion after welding. More importantly, 316L contains molybdenum. This addition significantly increases resistance to chemical corrosion and pitting. For a medical device that must survive repeated sterilization cycles or implantation, 316L is the gold standard.
Precision tubing is defined by strict tolerances. When you order customized tubes, you aren't just buying metal; you are buying specific performance metrics.
For high-end applications, such as laser-cut medical tubes, manufacturers must adhere to tight specifications regarding roughness and pressure resistance. A rough inner wall can trap bacteria in medical devices or disrupt fluid flow in precision instruments.
Here is a breakdown of typical specifications you should expect from top-tier manufacturers:
Feature | Specification Standard |
|---|---|
Material Grades | 304, 316L (Medical/Industrial) |
Outer Diameter (OD) | 0.1mm - 6mm |
Wall Thickness | 0.05mm - 1mm |
Inner Wall Roughness | Ra ≤ 0.4μm |
Pressure Resistance | ≥ 20MPa |
Tolerance | ±1% |
Surface Treatment | Polishing, Passivation, Coating |
One often-overlooked requirement in medical and electronic sectors is magnetic permeability. Standard stainless steel can become slightly magnetic after cold working (the process used to size the tubes). However, for applications involving MRI machines or sensitive electronics, the tubing must remain non-magnetic to prevent interference.
Advanced manufacturers use specific annealing processes to restore the austenitic structure of the steel, ensuring the tubes remain non-magnetic even after being drawn down to capillary sizes. If your project involves magnetic resonance or sensitive calibration, ensure your supplier explicitly states their tubes are non-magnetic.
For those looking for specialized components that meet these rigorous standards, you can find Customized 304 316L Stainless Steel Capillary Tubes for Medical Grade Laser Cutting Without Magnetic Tubes that are specifically engineered for these high-precision environments.
Raw tubing is rarely the final step. To integrate a pipe into a complex assembly, it often needs secondary processing. Modern fabrication methods allow for incredible customization:
Laser Cutting: This provides burr-free cuts with micron-level accuracy, essential for creating slots, holes, or complex patterns on the tube walls.
Flaring and Necking: Changing the diameter at the tube's end allows for seamless connection with other components.
Surface Treatments: Electropolishing removes surface ions to create an ultra-clean, shiny surface that resists bacterial growth.
Finding a reliable partner for wholesale stainless steel pipes can be challenging. The market is flooded with suppliers, but consistency is rare. When vetting a supplier for bulk orders, look for the following indicators of quality:
ISO Certification: Adherence to ISO 9001 ensures that the manufacturer follows consistent quality management protocols.
Traceability: Can the supplier trace the raw material back to the mill? In medical and aerospace fields, this paper trail is mandatory.
Capacity and Lead Time: A typical lead time for customized orders is around 22 to 30 days. Be wary of suppliers promising instant turnaround for custom specs, as this often implies cutting corners on quality checks.
MOQ (Minimum Order Quantity): For specialized capillary tubes, MOQs are standard (often around 1000 pieces) due to the setup costs of precision machinery.
The stainless steel pipe is a foundational element of modern technology. Whether it is facilitating a life-saving surgery or helping a factory run automatically, the reliability of the tube determines the success of the operation. By understanding grades, tolerances, and the importance of customization, you ensure your projects are built on the strongest possible foundation.
As industries continue to demand smaller, stronger, and more precise components, partnering with a manufacturer that understands the intricacies of capillary tubing is the smartest investment you can make.
