In the world of precision engineering and manufacturing, the smallest components often carry the biggest responsibilities. Whether it is a life-saving medical device delivering medication or a complex industrial sensor monitoring pressure, the tubing used to transport fluids and gases must be flawless. This is where the straight tube comes into play.
A stainless steel capillary straight tube is more than just a piece of piping. It is a highly engineered component designed for durability, pressure resistance, and extreme accuracy. For engineers and procurement officers, understanding the technical nuances of these tubes is vital for ensuring the longevity and safety of their final products.
This guide explores the features, applications, and manufacturing standards of high-quality stainless steel straight tubes, helping you make informed decisions for your next project.
A straight tube, specifically in the context of capillary tubing, refers to a long, narrow cylinder characterized by tight tolerances and a smooth internal and external finish. Unlike coiled tubing, which is wound onto spools, straight tubes are delivered in specific cut lengths, ensuring they are ready for immediate use in assembly lines or precision machinery.
The defining characteristic of a premium straight tube is its material composition. Most high-performance tubes are crafted from 300-series stainless steel. This material choice offers a unique balance of strength and formability, making it the industry standard for demanding environments.
When sourcing a straight tube, you will often encounter the term "seamless." Unlike welded tubes, which are formed by rolling a sheet and welding the seam, seamless tubes are extruded. This manufacturing method eliminates the weak point created by a weld seam.
The benefits of seamless construction include:
Higher Pressure Resistance: Without a seam, the tube can withstand significantly higher internal pressures (often ≥20MPa).
Uniformity: The wall thickness remains consistent throughout the entire length of the tube.
Corrosion Resistance: Seams can sometimes be focal points for corrosion; seamless tubes remove this risk.
Selecting the right alloy is perhaps the most critical step in choosing a straight tube. While there are many variations of stainless steel, two grades dominate the market due to their reliability and performance.
This is the most common form of stainless steel used in industrial applications. It offers excellent corrosion resistance and good formability. It is often the go-to choice for general industrial automation, sensors, and structural components where extreme chemical exposure is not a primary concern.
The "L" stands for "Low Carbon." This grade includes molybdenum, which significantly increases corrosion resistance, particularly against chlorides and other industrial solvents. 316L is considered "medical grade." If your application involves medical devices, food processing, or marine environments, 316L is the superior choice due to its high biocompatibility and resistance to pitting.
When working with a professional Straight tube manufacturer, you are not limited to standard sizes. Modern manufacturing allows for microscopic precision. High-quality capillary tubes are often cold-rolled, a process that hardens the steel and allows for incredibly tight tolerances.
Below is a breakdown of the typical specifications you can expect from top-tier stainless steel capillary tubes:
Feature |
Specification Range |
|---|---|
Outer Diameter (OD) |
0.1 mm – 6.0 mm |
Wall Thickness |
0.05 mm – 1.0 mm |
Material Grade |
300 Series (304, 316L) |
Length Tolerance |
±1% |
Pressure Resistance |
≥ 20 MPa |
Inner Wall Roughness |
Ra ≤ 0.4μm |
Construction Type |
Seamless |
The inner wall roughness (Ra) is particularly important. A value of Ra ≤ 0.4μm indicates an extremely smooth surface (often electropolished). In medical and analytical applications, a smooth inner wall prevents bacteria buildup and ensures the smooth flow of liquids without turbulence.
The versatility of the stainless steel straight tube allows it to serve as a foundational component across several distinct sectors.
In the medical field, failure is not an option. 316L stainless steel tubes are utilized for hypodermic needles, endoscopy equipment, and catheters. The material’s biocompatibility ensures it does not react adversely with human tissue, while the seamless construction ensures the structural integrity required for surgical instruments.
Automated machinery relies on sensors to detect temperature, pressure, and flow. Stainless steel capillary tubes act as protective sheaths for these delicate sensors (such as thermocouples). They protect sensitive wires from heat, moisture, and physical impact while maintaining a compact form factor.
Hygiene is paramount in food processing. The smooth, polished surface of these tubes allows for easy cleaning and sterilization. They are commonly used in dispensing nozzles and filling machines where precise liquid volume control is required.
One size rarely fits all in specialized manufacturing. A reputable Straight tube manufacturer will offer value-added services to tailor the tubing to your exact blueprints. Customization goes beyond just cutting the tube to length; it involves altering the shape and surface of the metal to fit complex assemblies.
Common customization options include:
Necking and Flaring: Reducing or expanding the diameter at the tube's end to fit into connectors.
Threading: Adding internal or external threads for screw-in assembly.
Electropolishing: An electrochemical process that removes surface material to create a microscopically smooth, shiny finish.
Passivation: A chemical treatment that enhances the natural corrosion resistance of stainless steel.
If you are looking for tubing that requires specific aesthetic or functional surface finishes, you can view examples of custom polished stainless steel capillary tubes to understand the level of precision available.
The global supply chain for stainless steel has evolved, and China has emerged as a powerhouse for precision metal fabrication. Opting for a China Straight tube supplier often provides a competitive advantage regarding cost without compromising on quality standards.

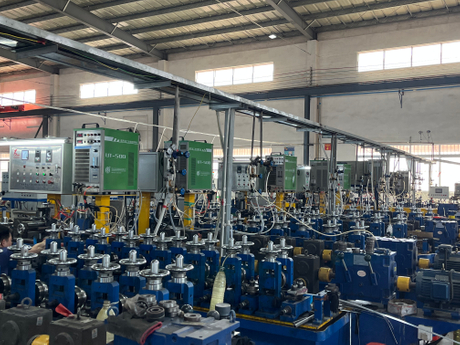

Leading manufacturers in regions like Guangdong operate under strict ISO 9001 quality management systems. They utilize advanced cold-rolling technology and automated inspection equipment to ensure that every batch meets international standards. Whether you need a prototype run of 1,000 pieces or mass production, these suppliers offer the scalability and speed that Western markets often struggle to match at similar price points.
Not all tubing is created equal. When vetting a supplier, look for transparency regarding their raw materials and processing capabilities.
Ask the following questions:
Do they provide material certifications? Ensure you are getting genuine 304 or 316L steel.
What is their MOQ (Minimum Order Quantity)? Some suppliers require massive orders, while others (like those offering 1000 pieces) are more flexible.
Can they handle secondary processing? Buying a tube that is pre-cut, polished, and chamfered saves you time and money on the assembly line.
The humble straight tube is a testament to the importance of detail. From the specific alloy composition to the smoothness of the inner wall, every micro-millimeter matters. Whether you are building the next generation of medical robots or simply need reliable piping for a coffee machine, choosing the right stainless steel capillary tube ensures your product performs reliably for years to come.
By understanding the specifications and customization options available, you can select a component that perfectly matches your engineering requirements, ensuring safety, efficiency, and quality in every application.
