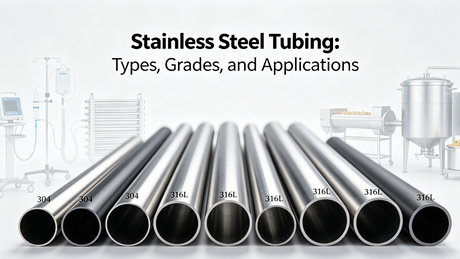

Stainless steel tubing comes in welded and seamless forms across grades like 304 and 316L. It serves industries ranging from medical devices to heat exchangers, prized for its corrosion resistance, pressure tolerance, and biocompatibility. Choosing the right tube depends on wall thickness, grade, and intended application.
Stainless steel tubing quietly powers some of the most demanding systems around us—from surgical instruments to industrial boilers. Yet picking the right tube isn't always straightforward. Grade, wall thickness, weld type, and surface finish all shape how a tube performs in the field. This guide breaks down the main types of stainless steel tubing, their key applications, and how to match the right product to your project.
Thin wall stainless steel tube features a reduced wall thickness—often as low as 0.05mm—while keeping a precise outer diameter. This combination saves weight and material without sacrificing strength.
Manufacturers like Guangdong Capillary Metal Products produce tubes with outer diameters from 0.1mm to 6mm and inner wall roughness as fine as Ra≤0.4μm. These specs make thin wall tubing ideal for precision instruments, automation equipment, and compact medical tools where space and accuracy matter.
Both welded and seamless stainless steel pipe have their place. The right pick depends on pressure demands, budget, and application.
Choose welded stainless steel pipe if cost efficiency and larger diameters matter more than extreme pressure tolerance. Welded pipes suit construction, decoration, and general industrial use.
Choose seamless stainless steel pipe if your application involves high pressure (≥20MPa) or strict cleanliness, such as medical devices and precision instruments.
Seamless designs enhance overall strength and pressure resistance because they lack a weld seam—a common stress point.
Stainless steel tubing shows up across a remarkable range of sectors. Here's a quick reference table comparing common applications, recommended grades, and key features.
Application | Recommended Grade | Key Features |
|---|---|---|
Medical devices & surgical tools | 316L medical-grade | Biocompatibility, electropolished finish, tight tolerance |
304/316 | High-temperature resistance, corrosion resistance | |
Food machinery & processing | 304 food-grade | Sanitary surface, easy to clean, rust-resistant |
Construction & structural | 304 welded | Strength, durability, cost efficiency |
Capillary tubes (tubos capilares) | 304/316 | Small diameter, dimensional accuracy ±0.05mm |
Stainless steel tube heaters | 304/316 spiral | Heat transfer efficiency, custom coil shapes |
Medical grade stainless steel tubing, typically 316L, must meet strict standards for safety and performance. It offers excellent biocompatibility, meaning it won't react harmfully with body tissue.
Tubes used in medical devices often undergo extra treatments like electropolishing and passivation to create ultra-smooth, contamination-resistant surfaces. Compliance with the ISO 9001 quality management system adds another layer of assurance. Custom services such as necking, flaring, and threading let manufacturers tailor tubes to specific surgical or diagnostic instruments.
Food grade stainless steel pipe, usually 304, is built for hygiene. Its smooth, rust-resistant surface prevents bacteria buildup and stands up to repeated cleaning.
These pipes are common in food machinery, beverage equipment, and kitchen utensils. Because they resist corrosion from acids and moisture, they keep food contact surfaces safe over long service lives.
Getting the right tube starts with sharing clear specs: grade, outer diameter, wall thickness, length, and surface treatment. Reputable suppliers offer customization on tolerance, shape (round, square, oval), and finish (satin, mirror, pickled).
Many manufacturers provide free samples and low minimum order quantities, making it easier to test before committing to a bulk order. Stock products typically ship within 3–7 days, while custom orders take 20–45 days.
The best stainless steel tube isn't the most expensive one—it's the one that matches your needs. Medical work calls for 316L and electropolished finishes. Construction projects favor cost-effective welded 304. Heat exchange systems need tubes built for temperature and pressure.
Start by defining your application, then narrow down grade, weld type, and wall thickness from there. When in doubt, request a sample and consult directly with a manufacturer who can guide custom processing.
What's the difference between 304 and 316 stainless steel tubing?
Grade 304 offers strong corrosion resistance and works well for food and construction uses. Grade 316 (and 316L) adds molybdenum for better resistance to chlorides and harsh environments, making it the standard for medical and marine applications.
Can stainless steel tubes be customized?
Yes. Suppliers offer custom outer diameters, wall thicknesses, lengths, shapes, and surface treatments. Additional processing like necking, flaring, threading, electropolishing, and passivation is also available.
What is the typical tolerance for precision stainless steel tubing?
Precision tubes can reach dimensional accuracy up to ±0.05mm on outer diameter, with wall thickness tolerances around ±10% or tighter on request.
Are welded stainless steel pipes strong enough for industrial use?
Yes. High-quality welded pipes serve construction, decoration, and many industrial applications. For very high-pressure systems, however, seamless pipes are usually the safer choice.
What is the minimum order quantity for stainless steel tubing?
It varies by supplier and product. Some manufacturers offer low minimum order quantities and free samples (with shipping paid by the buyer), which can be refunded or deducted from a bulk order.
