Stainless steel tubing might seem like a simple commodity, but the wrong choice can compromise an entire system. Whether you're sourcing components for a medical device, a heat exchanger, or a custom fabrication project, the specific grade, wall thickness, and manufacturing process behind a tube determines whether it will perform reliably for years or fail under pressure.
This guide breaks down the key categories of stainless steel tubing—from thin wall capillary tubes to welded pipes and square profiles—so you can match the right product to your application. We'll also cover what separates medical-grade tubing from industrial-grade options, and how wholesale buyers can navigate customization and sourcing decisions.
Thin wall stainless steel tube is defined by its narrow wall thickness relative to its outer diameter, typically ranging from 0.05mm to 1mm. This category includes precision capillary tubing manufactured through cold-rolling processes, which allows for tight tolerances and a smooth inner wall finish (often Ra≤0.4μm).
Because these tubes are so thin, they're prized in applications where space and weight matter—think surgical instruments, sensor housings, or compact fluid delivery systems. Despite the reduced wall thickness, quality thin wall tubing manufactured from 316L or 304 stainless steel can still withstand high pressure, often rated above 20MPa, while maintaining strong corrosion resistance and biocompatibility.

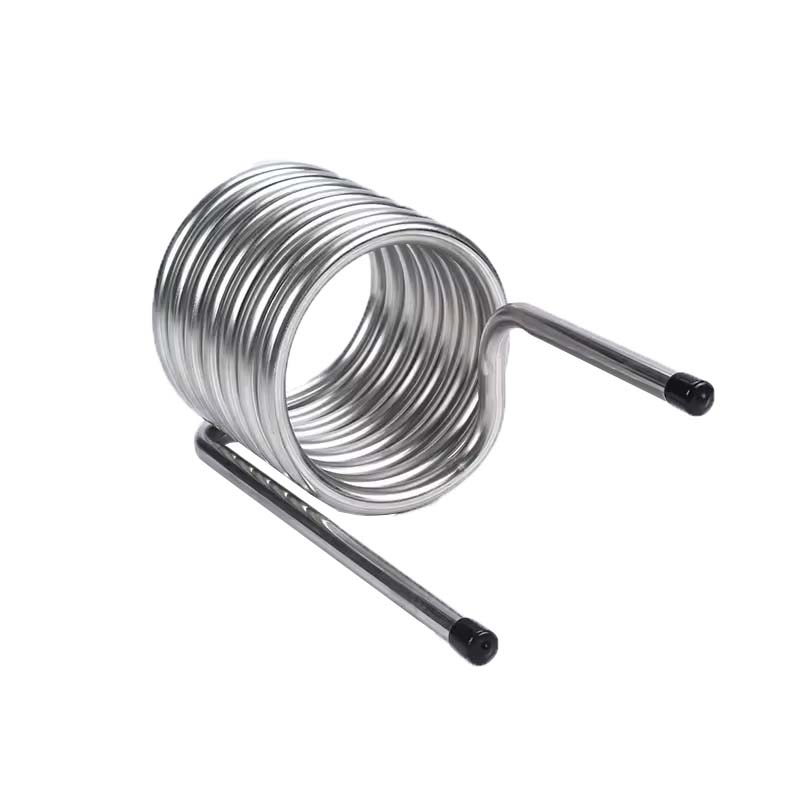

Heat exchanger piping needs to do one job exceptionally well: transfer heat efficiently while resisting the corrosive effects of the fluids passing through it. Stainless steel U-shaped cooling coils are a common configuration in this category, often built with a regular spiral coil structure and an adaptable hanger for straightforward installation.
These coils are used across industrial cooling systems and heat exchanger equipment, where corrosion resistance, durability, and dimensional stability are non-negotiable. Since cooling requirements vary significantly between applications, most manufacturers offer customizable dimensions and parameters to match specific system needs.
Welded stainless steel pipe is produced by forming steel into a tube shape and joining the seam through welding, as opposed to seamless pipe, which is extruded without a joint. Bright surface welded pipes, for example, are typically manufactured from 304 or 316 stainless steel and finished to a polished, reflective surface.
Choose welded pipe if you need a cost-effective option for decorative, medical, or general industrial use where the weld seam won't compromise performance. Choose seamless pipe if your application involves high pressure or requires maximum structural integrity without any potential weak points along a seam.
Both types can be manufactured in the 300 series steel grade, with tight tolerances (commonly ±1%) and delivery timelines that typically run 22–30 days for custom orders.
Medical applications demand a different level of scrutiny than general industrial use. Medical grade stainless steel tubing—most often made from 316L stainless steel—must meet strict standards for biocompatibility, surface smoothness, and dimensional accuracy.
Manufacturers producing medical stainless steel tube typically comply with ISO 9001 quality management systems and offer surface treatments like electropolishing and passivation to eliminate contamination risks. These tubes commonly appear in:
Surgical and laparoscopic instruments
Endoscopic components
Diagnostic and detecting instruments
Drug delivery devices
Given the stakes involved, buyers sourcing medical stainless steel tubing should always confirm certification documentation and request material traceability from their supplier.
Precision stainless steel tube refers to tubing manufactured to tight dimensional tolerances—often within fractions of a millimeter. Typical tolerance specifications include:
Dimension | Standard Tolerance |
|---|---|
Outer Diameter | ±0.2mm (or per customer request) |
Wall Thickness | ±10% (or per customer request) |
Length | ±10mm (or per customer request) |
Roundness | ±1% |
This level of precision is essential in applications like automation equipment and precision instruments, where even small dimensional deviations can cause fit or performance issues downstream.
For buyers purchasing in bulk, wholesale stainless steel pipes offer significant cost advantages, but the sourcing process requires more due diligence. Minimum order quantities (MOQs) for custom wholesale orders are often set around 1,000 pieces, with delivery times extending to 20–45 days depending on the complexity of customization.
When evaluating a wholesale supplier, consider:
Manufacturing capability – Confirm they operate their own factory rather than acting as a middleman reseller.
Sample availability – Reputable suppliers typically offer free samples, with buyers covering shipping costs (often refundable after a bulk order).
Customization scope – Look for suppliers who can adjust diameter, wall thickness, surface finish, and shape (round, square, or oval) to your specifications.
Payment security – Trade assurance orders or secure payment methods (T/T, PayPal, credit card) reduce risk on larger purchase orders.
While round tubing dominates most applications, stainless steel square tube for sale serves purposes where flat surfaces or structural rigidity matter more than a cylindrical profile. Square tubing is commonly customized alongside round and oval shapes, with the same attention to tolerance, surface finish (satin, hairline, polished, or mirror), and material grade as their round counterparts.
Square profiles are frequently specified in structural framing, decorative fixtures, and equipment housings where flush mounting or stacking is required.
Small-diameter stainless steel pipe—often ranging from as narrow as 0.1mm up to a few millimeters in outer diameter—represents some of the most technically demanding tubing to manufacture. These tubes are used in applications like temperature sensing instruments, jewelry, and compact fluid systems where larger tubing simply won't fit.
Because the margin for error shrinks as diameter decreases, small-diameter tubing production relies heavily on cold-rolling precision and rigorous quality checks to avoid deformation or inconsistent wall thickness.
Selecting the right stainless steel tube comes down to matching the tube's specifications to your application's real-world demands. A medical device manufacturer prioritizes biocompatibility and surface finish. A heat exchanger designer prioritizes thermal performance and corrosion resistance. A structural engineer prioritizes rigidity and consistent tolerances.
Before placing an order, gather your specifications: required grade (304 vs. 316L), outer diameter and wall thickness, tolerance requirements, surface finish, and intended application. Sharing this information upfront with your supplier—along with drawings if fabrication is involved—will get you a faster, more accurate quote and reduce the risk of costly rework.
What's the difference between 304 and 316L stainless steel tubing?
304 is a general-purpose stainless steel grade suited to industrial and decorative applications. 316L contains molybdenum, which improves corrosion resistance and biocompatibility, making it the preferred choice for medical-grade tubing.
How long does it take to receive custom stainless steel tubing?
Stock products typically ship within 3–7 days after payment. Custom orders involving specific dimensions or surface treatments usually take 20–45 days, depending on complexity and order volume.
What is the typical minimum order quantity for wholesale tubing?
MOQs vary by supplier and product type, but custom wholesale orders often start around 1,000 pieces. Some manufacturers offer smaller trial orders or samples before committing to bulk quantities.
Can stainless steel tubing be customized in shape and finish?
Yes. Most manufacturers offer round, square, and oval profiles, along with finish options like satin, hairline, polished, mirror, or pickled surfaces, plus additional processing like necking, flaring, and threading.
Is thin wall tubing strong enough for high-pressure applications?
Despite reduced wall thickness, precision-manufactured thin wall tubing can be engineered to withstand high pressure—often rated above 20MPa—thanks to tight-tolerance cold-rolling processes and appropriate material grade selection.
