Precision stainless steel tubes are high-tolerance metal tubes used across medical, industrial, and structural applications. Key types include small-diameter capillary tubes, medical-grade seamless tubes, and stainless steel square tubes. Grades 304 and 316L are the most common, with 316L preferred for medical use due to its superior biocompatibility and corrosion resistance.
Stainless steel tubes are everywhere—inside the medical devices that save lives, the automation equipment running factory floors, and the structural frameworks holding modern architecture together. But not all stainless steel tubes are equal. When an application demands exact dimensions, consistent wall thickness, and controlled surface finish, precision stainless steel tube is the only specification worth discussing.
This guide covers what sets precision tubes apart, how to choose the right grade and format for your application, and what to look for when sourcing wholesale stainless steel pipes at scale.
Standard pipe tolerances leave room for variation. Precision tubes don't. The term "precision" refers to tight dimensional control across outer diameter, wall thickness, and inner surface finish—all held to exacting standards throughout the manufacturing process.
Precision stainless steel tubes from Guangdong Capillary Metal Products, for example, are manufactured via a cold-rolling process that achieves outer diameters as small as 0.1mm and wall thicknesses down to 0.05mm. Inner wall roughness is held to Ra≤0.4μm—a level of smoothness critical in fluid-handling and medical applications. Pressure resistance reaches ≥20MPa, making these tubes suitable for demanding environments.
The result is a tube that performs consistently, fits precisely, and holds up under real-world operating conditions.
Grade selection is the most consequential decision when sourcing precision tubes. Two grades dominate the market: 304 and 316L.
304 stainless steel is the workhorse of industrial applications. It offers strong corrosion resistance, good formability, and a cost-effective price point. Choose 304 if your application involves general industrial environments, structural framing, electronics, or food machinery where chloride exposure is minimal.
316L stainless steel adds molybdenum to the alloy, which significantly improves resistance to chlorides and pitting corrosion. The "L" designation means lower carbon content, reducing the risk of sensitization during welding. Choose 316L when your application involves body contact, sterilization cycles, chemical exposure, or any environment where contamination risk is unacceptable—such as medical devices and laboratory instruments.
Property | Grade 304 | Grade 316L |
|---|---|---|
Chromium Content | 18–20% | 16–18% |
Molybdenum | None | 2–3% |
Corrosion Resistance | Good | Excellent |
Biocompatibility | Moderate | High |
Typical Applications | Industrial, structural | Medical, chemical, food-grade |
Relative Cost | Lower | Higher |
Weld Sensitization Risk | Higher | Lower |
For buyers sourcing wholesale stainless steel pipes across multiple project types, maintaining inventory in both grades is common practice.
Medical stainless steel tube operates under an entirely different set of requirements than industrial pipe. The human body is an unforgiving environment—temperature fluctuations, bodily fluids, sterilization chemicals, and mechanical stress all act on the material simultaneously.
Medical-grade tubes from Guangdong Capillary Metal Products are manufactured from 316L stainless steel and tested for biocompatibility. Surface treatments such as electropolishing and passivation reduce surface roughness, eliminate surface contamination, and create a passive oxide layer that resists corrosion and bacterial adhesion.
Key specifications for medical stainless steel tube include:
Outer diameter range: 0.1–6mm
Wall thickness: 0.05–1mm
Inner surface roughness: Ra≤0.4μm
Pressure resistance: ≥20MPa
Compliance: ISO 9001 quality management system
Custom processing options—including necking, flaring, threading, and laser cutting—allow medical device manufacturers to source components to exact design requirements rather than adapting designs to available stock.
Small-diameter stainless steel pipe (often called capillary tubing when outer diameters fall below 6mm) is one of the most technically demanding product categories in precision metalworking. The wall thickness-to-diameter ratio must remain consistent across the entire length, and even minor deviations can affect fluid flow, structural integrity, or fit within an assembly.
Common applications for small-diameter precision tubes include:
Medical devices – needles, catheters, endoscopic tools, and implant components
Precision instruments – temperature sensors, pressure gauges, and flow meters
Automation equipment – pneumatic actuators, fluid control systems, and robotic assemblies
Electronics – fiber optic housing, charging port structures, and antenna components
Chemical and laboratory equipment – sample lines, chromatography tubing, and reactor fittings
The cold-rolling manufacturing method used for precision capillary tubes produces a seamless structure without weld lines—eliminating the most common failure point in small-diameter tubing under pressure or cyclic loading.
Round tube dominates fluid-handling applications, but stainless steel square tube for sale serves a distinct and growing market. Square profiles offer flat mating surfaces that simplify fabrication, provide greater torsional stiffness, and suit architectural applications where aesthetics matter as much as performance.
Grades 304 and 316 are both available in square profiles, with surface finishes ranging from satin/hairline and mirror polish to pickled and custom treatments. Guangdong Capillary Metal Products offers square tubes in custom sizes with OD tolerances of ±0.2mm—precise enough for electronics assembly and structural fabrication alike.
Applications for stainless steel square tubes include mobile phone charging port components, decorative architectural framing, electronic equipment housings, and precision mechanical assemblies.
Sourcing wholesale stainless steel pipes at volume requires more than comparing price per kilogram. Lead time, MOQ, tolerance consistency, and customization capability all affect total project cost and timeline.
Key questions to ask any wholesale supplier:
What is the minimum order quantity? For precision tubes from Guangdong Capillary Metal Products, MOQ starts at 1,000 pieces for standard products.
What is the lead time? Stock products typically ship within 3–7 days; custom orders require 20–45 days after payment confirmation.
Can you provide samples? Reputable suppliers offer samples (often with freight at buyer's cost, refundable on bulk order confirmation).
What quality certifications apply? Look for ISO 9001 compliance as a baseline, with additional certifications for medical or food-grade applications.
What customization is available? End forming, threading, electropolishing, passivation, and custom cutting are standard options with precision-focused manufacturers.
Pricing varies by steel grade, wall thickness, outer diameter, surface finish, and order volume. Suppliers with direct manufacturing capability—rather than trading companies—typically offer more competitive pricing and faster response to specification changes.
Seamless tubes are formed from solid billets without a weld seam, producing a uniform structure with no weak points. Welded tubes are formed by rolling flat strip and welding the seam closed. For high-pressure, medical, or precision applications, seamless construction is generally preferred. Welded tubes are acceptable for lower-pressure structural or decorative uses.
Grade 316L is the standard choice for medical stainless steel tube. Its molybdenum content improves corrosion resistance in chloride environments, its low carbon content reduces sensitization during sterilization, and its biocompatibility profile meets the requirements of most implant and instrument applications.
Small-diameter stainless steel pipe generally refers to tubes with outer diameters below 6mm. Capillary tubing extends this down to 0.1mm OD. These tubes require precision cold-rolling manufacturing to maintain consistent wall thickness and surface finish at small scales.
Yes. Customization options typically include outer diameter, wall thickness, length, end treatment (necking, flaring, threading), and surface finish (electropolishing, passivation, mirror polish, hairline). Custom shapes such as square, oval, and rectangular profiles are also available from specialist manufacturers.

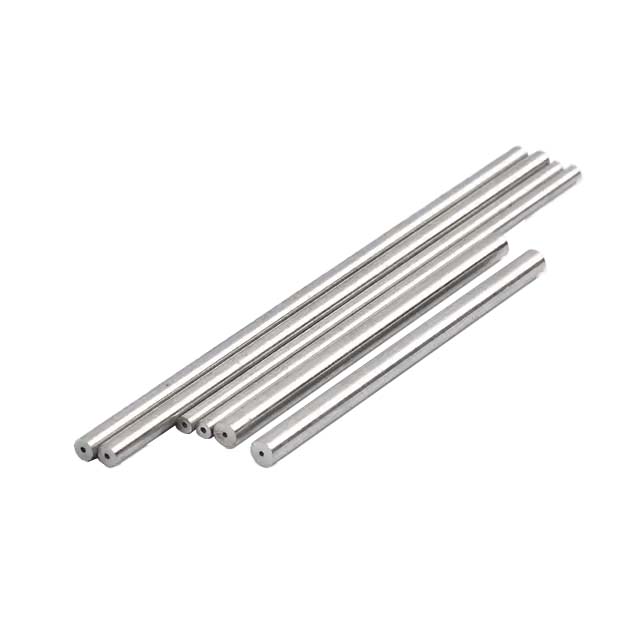

Guangdong Capillary Metal Products (sscapillary.com) manufactures and supplies wholesale stainless steel pipes, precision capillary tubes, medical stainless steel tubes, and stainless steel square tubes with full customization and ISO 9001 compliance. The company ships internationally from Jiangmen, Guangdong, China.
Precision stainless steel tube selection comes down to three variables: grade, geometry, and surface specification. Match the grade to your chemical and biological environment, the geometry to your structural and fluid-handling requirements, and the surface finish to your cleanliness and aesthetic standards.
For medical device manufacturers, 316L seamless small-diameter tube with electropolished inner surfaces is the consistent choice. For industrial automation, 304 capillary tube with standard tolerances covers most use cases. For structural and decorative work, 304 or 316 square tube with a hairline or mirror finish delivers both performance and visual appeal.
Sourcing from a manufacturer with direct cold-rolling capability—and a demonstrated track record across medical, industrial, and electronic applications—reduces risk at every stage of the supply chain.
