Polished stainless steel capillary tubes represent precision engineering at its finest. These narrow-bore tubes, with their mirror-like finish and exceptional dimensional accuracy, serve critical functions across industries from medical devices to analytical instrumentation. Their unique combination of corrosion resistance, biocompatibility, and precise internal dimensions makes them indispensable components in applications where reliability cannot be compromised.
Whether you're designing medical equipment, developing analytical instruments, or working on aerospace applications, understanding the properties and applications of polished stainless steel capillary tubes can significantly impact your project's success. This comprehensive guide explores everything you need to know about these precision components, from their manufacturing process to their diverse applications and selection criteria.

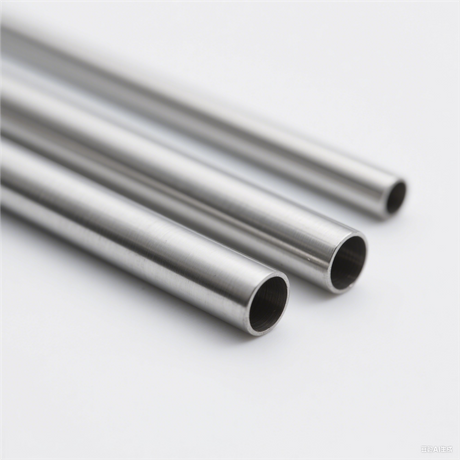

Polished stainless steel capillary tubes are thin-walled, small-diameter tubes with highly refined internal and external surfaces. The term "capillary" refers to their narrow bore, typically ranging from 0.1mm to 6mm in internal diameter. The polishing process creates an extremely smooth surface finish, often achieving roughness values as low as Ra 0.1 micrometers.
These tubes are manufactured from various grades of stainless steel, with 316L being the most common due to its excellent corrosion resistance and biocompatibility. The polishing process not only improves the aesthetic appearance but also enhances functional properties such as cleanability, corrosion resistance, and flow characteristics.
The manufacturing of polished stainless steel capillary tubes begins with cold drawing, where larger diameter tubes are progressively reduced through a series of dies. This process creates the precise dimensions required while work-hardening the material. Subsequent annealing treatments restore the material's ductility and relieve internal stresses.
The polishing process involves multiple stages, starting with mechanical polishing using progressively finer abrasives. Advanced manufacturers employ electropolishing, which removes surface material at the microscopic level, creating an exceptionally smooth finish. This process also enhances corrosion resistance by removing embedded contaminants and creating a passive oxide layer.
High-quality polished stainless steel capillary tubes undergo rigorous testing including dimensional verification, surface roughness measurement, and cleanliness assessment. Many applications require tubes that meet specific industry standards such as ASTM A269 for general service or ASTM A213 for boiler and superheater applications.
The polished surface of these tubes provides several advantages. The smooth finish reduces friction, minimizes particle entrapment, and facilitates thorough cleaning. This is particularly important in pharmaceutical and food processing applications where contamination must be prevented.
Stainless steel's inherent corrosion resistance is enhanced by the polishing process. The smooth surface provides fewer sites for corrosion initiation, while electropolishing creates a more uniform and thicker passive layer. This makes polished tubes suitable for aggressive chemical environments and long-term exposure to corrosive media.
Modern manufacturing techniques allow for extremely tight tolerances on both internal and external dimensions. Wall thickness variations can be controlled to within ±0.025mm, while internal diameter tolerances of ±0.013mm are achievable. This precision is crucial for applications requiring consistent flow rates or accurate dosing.
The smooth, non-porous surface of polished stainless steel capillary tubes makes them easy to clean and sterilize. They are compatible with various sterilization methods including autoclaving, gamma radiation, and chemical sterilization, making them ideal for medical and pharmaceutical applications.
Polished stainless steel capillary tubes are extensively used in medical devices such as hypodermic needles, catheter components, and drug delivery systems. Their biocompatibility ensures they won't cause adverse reactions when in contact with body fluids or tissues. The smooth internal surface prevents bacterial adhesion and facilitates complete cleaning between uses.
High-performance liquid chromatography (HPLC), gas chromatography, and mass spectrometry systems rely on polished stainless steel capillary tubes for sample transport and injection. The inert surface prevents sample contamination or degradation, while the precise internal dimensions ensure consistent flow rates and accurate results.
The aerospace industry utilizes these tubes in fuel systems, hydraulic lines, and instrumentation. The combination of high strength-to-weight ratio, corrosion resistance, and reliability makes them suitable for demanding environments where failure is not an option.
Food-grade polished stainless steel capillary tubes are used in dispensing systems, sampling equipment, and process monitoring devices. The smooth surface prevents bacterial growth and allows for thorough cleaning, essential for maintaining food safety standards.
The choice of stainless steel grade depends on the application requirements. Grade 316L offers excellent general corrosion resistance and is suitable for most applications. For more aggressive environments, super-austenitic grades like 904L or duplex stainless steels may be necessary.
Internal diameter, wall thickness, and length must be carefully selected based on flow requirements, pressure ratings, and installation constraints. The ratio of internal diameter to wall thickness affects both flexibility and pressure capability.
Different applications require varying levels of surface finish. Pharmaceutical applications may require electropolished surfaces with Ra values below 0.25 micrometers, while industrial applications might accept mechanically polished surfaces with Ra values up to 0.8 micrometers.
Polished stainless steel capillary tubes require careful handling to maintain their surface finish. Use clean, lint-free gloves and avoid contact with rough surfaces. Proper support during installation prevents deformation that could affect performance.
Various connection methods are available including compression fittings, welded joints, and quick-connect systems. The choice depends on the application requirements for pressure, temperature, and the need for frequent disconnection.
Establish appropriate cleaning procedures based on the application. Pharmaceutical applications may require validated cleaning procedures using specific detergents and rinse water quality. Regular inspection for damage or contamination ensures continued performance.
Inconsistent flow rates may indicate internal contamination, dimensional variations, or connection problems. Systematic troubleshooting should include pressure testing, flow verification, and visual inspection.
While stainless steel is highly corrosion-resistant, certain conditions can cause problems. Chloride contamination, improper cleaning chemicals, or exposure to extreme conditions may compromise the passive layer.
The industry continues to advance with new manufacturing techniques and materials. Additive manufacturing is being explored for complex geometries, while new alloy compositions promise even better performance in specific applications. Smart tubes with integrated sensors for real-time monitoring represent an emerging trend.
Selecting the appropriate polished stainless steel capillary tube requires careful consideration of all application requirements. Work with experienced suppliers who can provide technical support and quality documentation. Consider factors such as regulatory requirements, environmental conditions, and long-term performance expectations.
The investment in high-quality polished stainless steel capillary tubes pays dividends through reliable performance, reduced maintenance, and extended service life. Whether you're developing the next generation of medical devices or improving analytical instrumentation, these precision components provide the foundation for success.
