Welding stainless steel tube requires precision, proper technique, and the right equipment to achieve strong, corrosion-resistant joints. Unlike carbon steel, stainless steel presents unique challenges due to its composition and thermal properties. This comprehensive guide will walk you through everything you need to know about welding stainless steel tube, from material selection to advanced techniques used in professional manufacturing.
Whether you're working on a small repair project or manufacturing precision tubing, understanding the fundamentals of stainless steel welding will help you achieve professional-quality results while avoiding common pitfalls that can compromise the integrity of your work.
Before diving into welding techniques, it's essential to understand the different types of stainless steel commonly used in tube manufacturing. Each grade has specific properties that affect welding parameters and outcomes.
304 and 304L Stainless Steel
The most widely used austenitic stainless steel grades, 304 and 304L offer excellent corrosion resistance and weldability. The "L" designation indicates lower carbon content, which reduces the risk of carbide precipitation during welding.
316 and 316L Stainless Steel
These grades contain molybdenum, providing superior corrosion resistance, especially in marine environments. They're slightly more challenging to weld than 304 grades but offer enhanced performance in demanding applications.
321 Stainless Steel
Stabilized with titanium, 321 stainless steel resists intergranular corrosion at high temperatures. This grade requires careful heat management during welding to maintain its stabilized structure.
310S Stainless Steel
A high-temperature resistant grade with excellent oxidation resistance. It requires specialized welding techniques due to its high nickel content and thermal expansion characteristics.
Professional welding of stainless steel tubes demands precision equipment designed to handle the material's specific requirements.
Gas Tungsten Arc Welding (GTAW), commonly known as TIG welding, is the preferred method for stainless steel tubes. Modern precision argon arc welding machines offer several advantages:
★Continuous forming capability for consistent weld quality
★Compact structure that allows access to tight spaces
★Precision welding controls for exact heat input management
★Precise control systems that maintain consistent arc characteristics
Advanced welding systems can accommodate various tube sizes and wall thicknesses while maintaining the purity of the weld zone through proper shielding gas coverage.
Argon is the primary shielding gas for stainless steel welding, providing excellent arc stability and weld protection. For specific applications, argon-hydrogen mixtures may be used to improve penetration and travel speeds, though this requires careful consideration of hydrogen embrittlement risks.
Material Cleaning
Remove all contaminants from the tube surfaces, including oils, oxides, and residual manufacturing compounds. Use stainless steel brushes and appropriate solvents to ensure clean base metal.
Joint Design
Select appropriate joint configurations based on application requirements. Butt joints are common for pressure applications, while fillet welds may be suitable for structural connections.
Fit-up and Alignment
Ensure proper gap and alignment between tube sections. Inconsistent gaps can lead to uneven penetration and compromised weld quality.
Current Settings
Start with lower amperage settings compared to carbon steel welding. Stainless steel's lower thermal conductivity means less heat input is required to achieve proper fusion.
Travel Speed
Maintain consistent travel speeds to ensure uniform heat distribution. Too slow can cause excessive heat buildup, while too fast may result in incomplete fusion.
Arc Length
Keep a short, consistent arc length to maintain precise control over the weld pool and minimize atmospheric contamination.
Root Pass
The initial pass requires careful attention to penetration and backing gas protection. Proper root formation sets the foundation for subsequent passes.
Fill and Cap Passes
Build up the weld with controlled overlapping passes, maintaining consistent bead profiles and avoiding excessive heat input that could affect the material's corrosion resistance.
Professional tube manufacturing employs sophisticated methods to achieve precision results consistently.
This advanced production method represents a significant improvement over traditional tube forming techniques. The floating core head system allows for:
★Precise dimensional control throughout the tube length
★Improved surface finish quality
★Reduced residual stresses in the finished product
★Enhanced roundness and concentricity
The process involves drawing the welded tube through a series of dies while maintaining internal support through the floating core system. This method is particularly effective for thin-wall applications where dimensional accuracy is critical.

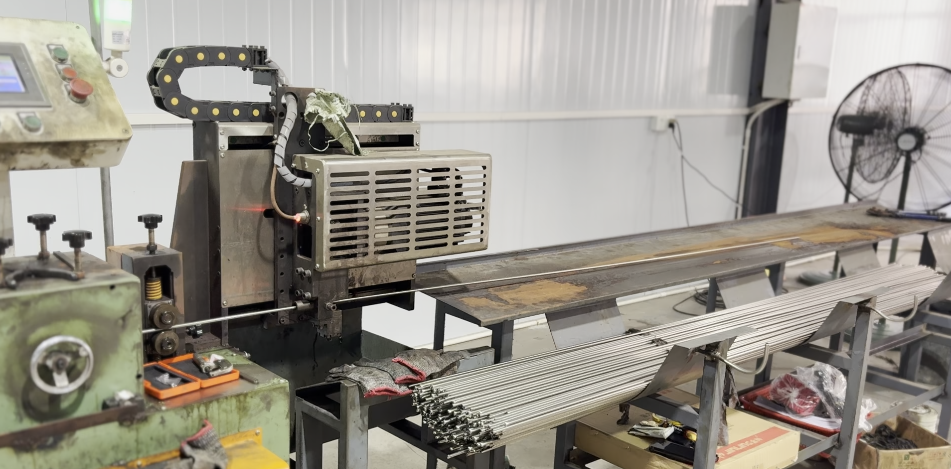

Straightening Operations
Professional manufacturing includes straightening processes that can be customized based on specific length requirements. This ensures the finished tubes meet dimensional tolerances while maintaining structural integrity.
Inspection Protocols
Comprehensive inspection procedures verify weld quality, dimensional accuracy, and surface finish. Non-destructive testing methods help identify potential defects before products reach customers.
Stainless steel's high thermal expansion coefficient makes distortion control crucial. Use proper fixturing and consider pre-heating strategies for thick-wall applications.
Excessive heat input can compromise the chromium oxide layer that provides stainless steel's corrosion resistance. Monitor interpass temperatures and use appropriate cooling methods.
Iron contamination from tools or work surfaces can create corrosion sites. Use dedicated stainless steel tools and maintain clean work environments.
Stainless steel tube welding finds applications across numerous industries, each with specific requirements and standards.
Food and Beverage Industry
Sanitary welding techniques ensure smooth, crevice-free joints that meet FDA and other regulatory requirements.
Pharmaceutical Manufacturing
Ultra-high purity welding methods prevent contamination in critical process systems.
Chemical Processing
Corrosion-resistant joints withstand aggressive chemicals and high-temperature environments.
Mastering stainless steel tube welding requires understanding both the theoretical principles and practical techniques that ensure consistent, high-quality results. Success depends on proper material selection, appropriate equipment, and meticulous attention to welding parameters.
The combination of precision equipment, advanced manufacturing techniques like floating core head drawing, and comprehensive quality control measures enables manufacturers to produce stainless steel tubes that meet the most demanding specifications. Whether you're developing welding skills for maintenance applications or seeking to understand professional manufacturing processes, the principles outlined in this guide provide a solid foundation for achieving excellence in stainless steel tube welding.
