How To Cut Stainless Steel Tube: A Comprehensive Guide

Stainless steel tubes are widely used in various industries, including construction, automotive, and manufacturing, due to their durability, corrosion resistance, and strength. However, cutting stainless steel tubes requires precision and the right tools to ensure clean, burr-free edges. In this guide, we’ll explore different methods for cutting stainless steel tubes, the best tools to use, and safety tips to follow.

Why Cutting Stainless Steel Tube Can Be Challenging

Stainless steel is a tough material that can be difficult to cut without the proper techniques. Some challenges include:

◆Hardness: Stainless steel is harder than regular steel, requiring stronger cutting tools.

◆Heat Resistance: It retains heat, which can cause work hardening if not cut properly.

◆Burr Formation: Improper cutting can leave sharp edges that need additional finishing.

Choosing the right cutting method depends on the tube’s thickness, diameter, and the desired finish.

Best Tools for Cutting Stainless Steel Tube

1. Angle Grinder with a Cut-Off Wheel

An angle grinder fitted with a thin cut-off wheel is a common tool for cutting stainless steel tubes.

Pros:

◆Fast and efficient

◆Works for thick and thin tubes

◆Portable and widely available

Cons:

◆Can produce rough edges that need deburring

◆Generates sparks and heat

Steps to Cut with an Angle Grinder:

1.Secure the tube in a vise to prevent movement.

2.Mark the cutting line with a marker or scribe.

3.Put on safety gear (gloves, goggles, ear protection).

4.Turn on the grinder and make a steady, controlled cut along the marked line.

5.Smooth the edges with a file or deburring tool.

2. Hacksaw (Manual Cutting)

For thinner stainless steel tubes, a high-quality hacksaw with a fine-toothed blade can be effective.

Pros:

◆Low cost and no power required

◆Good for small DIY projects

Cons:

◆Labor-intensive and slow

◆Requires steady hands for a straight cut

Steps to Cut with a Hacksaw:

1.Clamp the tube securely.

2.Use a blade with at least 24 teeth per inch (TPI) for thin tubes or 18 TPI for thicker ones.

3.Apply steady pressure and cut slowly to avoid blade wear.

4.File the edges afterward for a smooth finish.

3. Tube Cutter (For Thin-Walled Tubes)

A manual tube cutter (also called a pipe cutter) is ideal for thin stainless steel tubes (up to 2mm thickness).

Pros:

◆Produces clean, burr-free cuts

◆Easy to use and portable

Cons:

◆Not suitable for thick-walled tubes

◆Requires multiple rotations

Steps to Use a Tube Cutter:

1.Place the tube in the cutter’s jaws and tighten the knob slightly.

2.Rotate the cutter around the tube, gradually tightening the knob after each rotation.

3.Continue until the tube is severed.

4.Remove any minor burrs with sandpaper.

4. Band Saw (For Precision Cuts)

A band saw with a bi-metal blade is excellent for precise and repeatable cuts on stainless steel tubes.

Pros:

◆Smooth, straight cuts

◆Suitable for thick tubes

◆Minimal heat buildup

Cons:

◆Requires a stationary machine

◆Higher initial cost

Steps to Cut with a Band Saw:

1.Secure the tube in a vise or clamp.

2.Choose a blade with 14-18 TPI for best results.

3.Feed the tube into the blade at a steady pace.

4.Cool the blade with cutting fluid if needed.

5. Plasma Cutter (For Industrial Use)

Plasma cutters use ionized gas to cut through stainless steel quickly.

Pros:

◆Extremely fast and efficient

◆Works on thick materials

Cons:

◆Expensive equipment

◆Requires proper ventilation and safety measures

Steps to Use a Plasma Cutter:

1.Mark the cutting line.

2.Ground the workpiece properly.

3.Wear protective gear (face shield, gloves).

4.Follow the manufacturer’s instructions for operation.

Safety Tips When Cutting Stainless Steel Tubes

◆Always wear safety goggles, gloves, and ear protection.

◆Work in a well-ventilated area to avoid inhaling metal dust.

◆Secure the tube firmly before cutting to prevent slipping.

◆Use cutting fluid when sawing or drilling to reduce heat buildup.

◆Keep a fire extinguisher nearby when using power tools.

Finishing the Cut Edge

After cutting, the edges may be sharp or uneven. To finish:

◆Use a deburring tool or file to remove sharp edges.

◆Sand with fine-grit sandpaper for a smooth finish.

◆For polished edges, use a flap wheel or buffing pad.

Conclusion

Cutting stainless steel tubes requires the right tools and techniques to achieve clean, precise cuts. Whether you’re using an angle grinder, hacksaw, tube cutter, band saw, or plasma cutter, always prioritize safety and proper handling. By following these methods, you can ensure efficient and accurate cuts for your projects.

For professional-grade results, consider investing in high-quality cutting tools and practice on scrap pieces before working on critical components. Happy cutting!

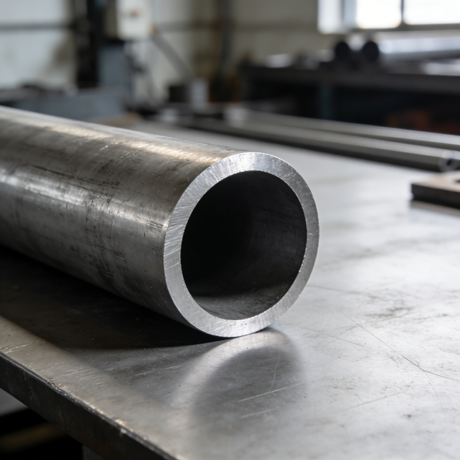

stainless steel tube

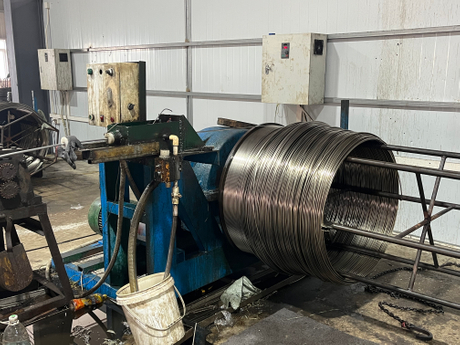

Miniature stainless steel tube

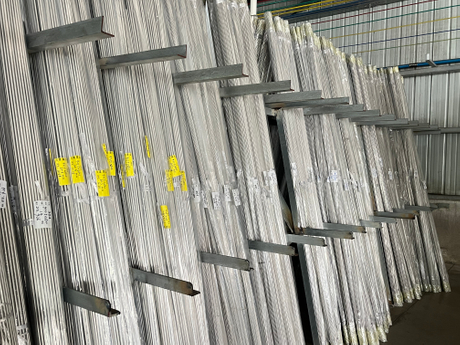

Precise stainless steel tube
