Thin walled stainless steel tubes have revolutionized modern engineering and manufacturing. These precision-engineered components offer an exceptional strength-to-weight ratio that makes them indispensable across countless industries. From medical devices to aerospace applications, these tubes deliver performance where traditional materials fall short.
Understanding the properties, applications, and selection criteria for thin walled stainless steel tubes can help engineers and manufacturers make informed decisions for their projects. This comprehensive guide covers everything you need to know about these versatile components.

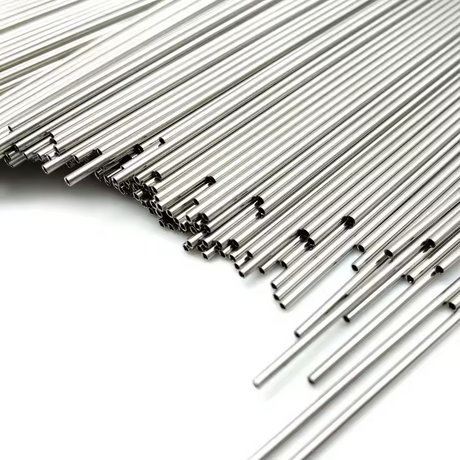

Thin walled stainless steel tubes are hollow cylindrical structures with wall thicknesses typically ranging from 0.1mm to 3mm. The wall thickness is significantly smaller compared to the tube's diameter, creating a high strength-to-weight ratio that's difficult to achieve with other materials.
These tubes maintain the corrosion resistance and durability that stainless steel is known for, while offering enhanced flexibility and reduced weight. The thin wall construction allows for precise bending, forming, and welding operations without compromising structural integrity.
The defining features of thin walled stainless steel tubes include:
Lightweight Construction: The reduced wall thickness significantly decreases weight while maintaining structural strength. This makes them ideal for applications where weight reduction is critical.
High Strength-to-Weight Ratio: Despite their thin walls, these tubes can withstand substantial pressure and stress loads. The inherent strength of stainless steel ensures reliability even with minimal material thickness.
Corrosion Resistance: Stainless steel's chromium content provides excellent protection against rust and corrosion, making these tubes suitable for harsh environments and outdoor applications.
Precision Manufacturing: Modern production techniques allow for extremely tight tolerances in wall thickness, outer diameter, and surface finish quality.
The production of thin walled stainless steel tubes requires specialized manufacturing techniques to achieve the precise dimensions and surface quality demanded by modern applications.
Most thin walled stainless steel tubes are manufactured through cold drawing, where the material is pulled through progressively smaller dies. This process:
★Reduces wall thickness while maintaining dimensional accuracy
★Improves surface finish quality
★Enhances mechanical properties through work hardening
★Allows for tight tolerance control
For welded thin walled tubes, advanced welding methods ensure consistent quality:
TIG Welding: Provides precise control over heat input, preventing warping or burn-through in thin materials.
Laser Welding: Offers minimal heat-affected zones and excellent weld quality for high-precision applications.
Resistance Welding: Enables high-speed production while maintaining consistent weld quality.
Manufacturers typically adhere to strict quality standards including:
★ASTM A269 for general service applications
★ASTM A213 for boiler and heat exchanger tubes
★ASTM A270 for sanitary applications
★ISO 9001 quality management systems
Thin walled stainless steel tubes serve critical functions across numerous industries, each taking advantage of their unique properties.
The medical industry relies heavily on thin walled stainless steel tubes for:
Surgical Instruments: Cannulas, needles, and endoscopic equipment require the biocompatibility and precision that these tubes provide.
Implantable Devices: Cardiovascular stents and orthopedic implants benefit from the corrosion resistance and strength.
Drug Delivery Systems: Precision bore tubing ensures accurate medication delivery in various medical devices.
Aircraft manufacturers utilize these tubes for:
Hydraulic Systems: Lightweight tubing reduces aircraft weight while maintaining system pressure requirements.
Fuel Lines: Corrosion resistance ensures safe fuel transport throughout the aircraft.
Structural Components: High strength-to-weight ratios contribute to overall aircraft efficiency.
Modern vehicles incorporate thin walled stainless steel tubes in:
Exhaust Systems: Heat resistance and corrosion protection extend component life.
Brake Lines: Reliable performance under high-pressure conditions ensures safety.
Fuel Injection Systems: Precision bore tubing maintains optimal fuel delivery.
Manufacturing facilities use these tubes for:
Heat Exchangers: Efficient heat transfer while resisting corrosion from process fluids.
Pneumatic Systems: Lightweight construction reduces system complexity.
Chemical Processing: Resistance to aggressive chemicals ensures process integrity.
Choosing the right stainless steel grade is crucial for optimal performance in thin walled applications.
304/304L Stainless Steel: The most commonly used grade, offering excellent corrosion resistance and formability. The low carbon content in 304L provides improved weldability.
316/316L Stainless Steel: Enhanced corrosion resistance due to molybdenum addition. Ideal for marine environments and chemical processing applications.
321 Stainless Steel: Titanium stabilization prevents carbide precipitation, making it suitable for high-temperature applications.
Duplex Stainless Steels: Higher strength grades like 2205 offer superior mechanical properties for demanding applications.
Yield Strength: Determines the maximum stress before permanent deformation occurs.
Tensile Strength: The ultimate strength before material failure.
Elongation: Indicates the material's ductility and formability.
Hardness: Affects wear resistance and machinability.
Corrosion Resistance: Critical for applications in aggressive environments.
Successful implementation of thin walled stainless steel tubes requires careful attention to design parameters and engineering considerations.
Determining optimal wall thickness involves balancing several factors:
Pressure Requirements: Internal or external pressure loads dictate minimum wall thickness for safe operation.
Bending Radius: Thinner walls allow for tighter bending radii but may require additional support.
Manufacturing Constraints: Extremely thin walls may be challenging to produce consistently.
Cost Considerations: Thinner walls reduce material costs but may increase manufacturing complexity.
Precision applications require tight control over:
Outer Diameter: Typically held to ±0.05mm or better for precision applications.
Wall Thickness: Variations can affect pressure ratings and performance.
Straightness: Critical for automated assembly and proper fit.
Surface Finish: Affects corrosion resistance and appearance.
Connecting thin walled tubes requires specialized techniques:
Orbital Welding: Provides consistent, high-quality welds for critical applications.
Compression Fittings: Mechanical connections that don't require welding.
Brazing: Suitable for dissimilar materials or temperature-sensitive applications.
Flaring: Creates leak-proof connections in hydraulic systems.
Understanding both the benefits and limitations of thin walled stainless steel tubes helps engineers make informed material selection decisions.
Weight Reduction: Significant weight savings compared to thick-walled alternatives enable improved system efficiency.
Material Efficiency: Less raw material usage reduces costs and environmental impact.
Flexibility: Easier to bend and form into complex shapes without specialized equipment.
Heat Transfer: Thinner walls improve heat transfer efficiency in thermal applications.
Space Efficiency: Compact designs allow for more efficient use of available space.
Handling Sensitivity: Thin walls are more susceptible to damage during transportation and installation.
Pressure Limitations: Lower pressure ratings compared to thick-walled tubes may restrict applications.
Vibration Sensitivity: May require additional support in high-vibration environments.
Manufacturing Complexity: Requires specialized equipment and expertise for consistent quality.
The thin walled stainless steel tube industry continues to evolve with advancing technology and changing market demands.
Additive Manufacturing: 3D printing technology enables complex geometries impossible with traditional methods.
Micro-Machining: Precision machining techniques allow for extremely small diameter tubes with tight tolerances.
Advanced Alloys: New stainless steel grades offer improved properties for specific applications.
Manufacturers are focusing on:
Recycling Programs: Increased use of recycled stainless steel reduces environmental impact.
Energy Efficiency: Improved manufacturing processes reduce energy consumption.
Lifecycle Assessment: Comprehensive evaluation of environmental impact throughout the product lifecycle.
Selecting the optimal thin walled stainless steel tube requires careful evaluation of application requirements, performance criteria, and cost considerations.
Start by clearly defining your application requirements, including operating conditions, pressure ratings, and dimensional constraints. Consider the total cost of ownership, including material costs, manufacturing complexity, and maintenance requirements.
Work with experienced suppliers who can provide technical support and quality assurance throughout the procurement process. Request samples and conduct thorough testing to validate performance before committing to large-scale production.
The versatility and performance benefits of thin walled stainless steel tubes make them an excellent choice for demanding applications across multiple industries. By understanding their properties, applications, and selection criteria, engineers can leverage these components to create innovative solutions that meet today's challenging requirements.
